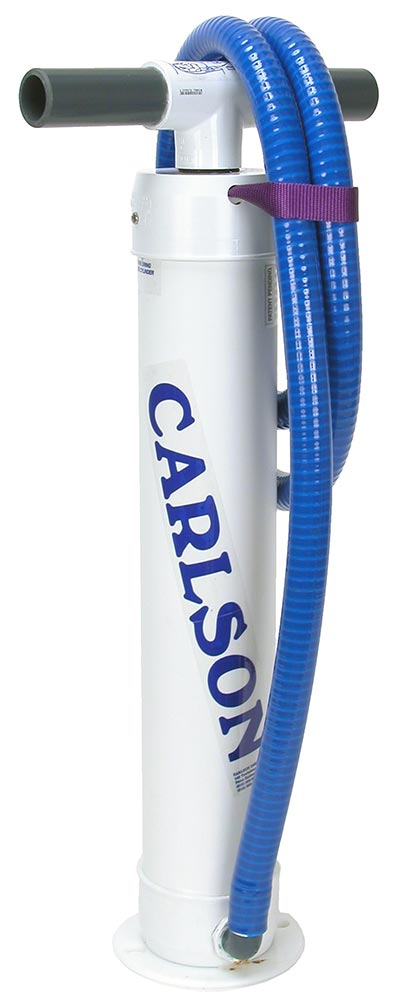

Carlson 4" Barrel Pump

10 Year Warranty. Available in both 4" and 6" diameters, Carlson Raft Pumps and Carlson Inflatable Kayak Pumps are pretty much the industry standard. We've dabbled with building barrel pumps over the years and the one problem that keeps plaguing us is shrinking piston O-rings. The pumps work fine for a while, and then no air output. We had to keep manually re-stretching the O-rings.

These utilize a flat polyethylene washer for the piston edge seal instead of an o-ring, though he does include an O-ring in the bottom of the cylinder for those who would rather switch. Allegedly the flat washers require little to no grease - or at least won't be harmed by the lack thereof - which is a big benefit if water gets inside. Not only does the grease congeal, but it necessitates cleaning & re-lubing the pump. The new flat washer also does a slightly better job of expelling any water that does get inside the pump body. Bear in mind though that if you don't remove water that gets inside, it will end up in your boat. Although we see commercial and private boaters taking big barrel pumps downriver all the time, it's really not the best idea. Better to use a smaller pump for top-off and emergencies.

Carlson also uses a tool similar to a large automobile cylinder boring/ honing tool to polish the interior of the pvc tube, and to make sure it is a perfect circle, which it almost never is from the factory. These extra measures combined with large output valves insure that no barrel pump takes less effort to use than a Carlson. These pumps have a ten year warranty.

The 4" size pumps half the volume on each stroke as the 6". If you own a raft or several boats and do not use an electric pump, get the 6". If you do have an electric pump or only own inflatable kayaks or a tiny raft, the 4" is far easier to top off with.
